3-Leg Plastic Pallet with Grid Top

Plastic pallet with cup feet and grid top 1000 x 1000 x 165 mm for warehouses

Plastic pallet with cup feet and grid top 1000 x 1000 x 165 mm is an pallet with a square size, suitable for stacking, storing, and transporting various goods within factories, warehouses, production workshops, and logistics centers.

The product has a static load capacity of 3000 kg and a dynamic load capacity of 1000 kg as indicated in the product image. The grid top design combined with a load-bearing rib system helps distribute the load evenly across the surface, while also facilitating drainage and easier cleaning compared to solid top pallets.

The pallet is offered in three material options: virgin green plastic, recycled green plastic, and recycled black plastic. Businesses can choose according to usage requirements, warehouse environment, and investment budget.

Ventilated grid surface design

The pallet surface is designed with multiple evenly distributed grid cells. This structure reduces unnecessary material use while providing better ventilation and drainage.

The grid top is suitable for areas frequently cleaned with water, humid warehouses, or businesses needing to minimize water accumulation on the pallet surface.

Longitudinal and transverse ribs are alternately arranged to support load distribution. When in use, goods should be evenly arranged on the surface to avoid concentrating the entire weight at a single point.

Sturdy cup foot structure

The pallet uses a cup foot design with multiple support points underneath. The feet elevate the pallet surface off the floor, limiting direct contact of goods with dust, water, or moisture.

The gaps between the feet allow forklift forks to enter when moving the pallet. However, businesses should verify the actual forklift type used to ensure fork dimensions and lifting direction are compatible with the pallet structure.

The cup foot design also allows pallets to nest more compactly when empty, depending on the specific product batch construction and warehouse arrangement.

Square size 1000 x 1000 mm

The 1000 x 1000 mm size provides a balanced stacking surface suitable for various types of bags, cartons, component packages, and raw materials.

The square pallet shape facilitates arranging goods in multiple directions. This size also fits many warehouse areas with narrow aisles or limited storage space.

Before ordering large quantities, customers should check package dimensions, racking systems, warehouse doors, truck beds, and lifting equipment to ensure pallet compatibility with operational processes.

Height 165 mm creates clearance from floor

The 165 mm height raises goods off the floor, reducing direct contact with water, dust, and moisture.

This clearance suits stacking in raw material warehouses, finished goods warehouses, production workshops, or packing areas.

When using the pallet for lifting and moving, operators should position forklift forks correctly and avoid direct impact on the pallet feet.

Static load capacity 3000 kg

Static load capacity is the maximum load the pallet can bear when placed stationary on a flat surface with goods distributed relatively evenly.

According to the product image, the pallet has a static load capacity of 3000 kg. This load rating suits many warehousing and factory stacking needs.

Actual load capacity may be affected by:

• How goods are distributed.

• Floor flatness.

• Ambient temperature.

• Pallet condition.

• Duration of load.

• Stacking method.

Static load capacity should not be interpreted as the load that can be lifted or moved by a forklift.

Dynamic load capacity 1000 kg

Dynamic load capacity is the maximum load the pallet can bear while being lifted or moved by suitable lifting equipment.

The product has a dynamic load capacity of 1000 kg as shown in the image. When transporting, goods should be placed evenly and secured to minimize shifting.

Operators should avoid overloading, sudden turns, or moving at high speed on uneven floors, as these actions increase impact forces on the pallet and goods.

Pallet weight 12.5 kg

The pallet weighs approximately 12.5 kg ±3%, balancing ease of handling with structural strength.

This weight makes the pallet easier to arrange, stack, and move within warehouses compared to some heavier pallet models. Meanwhile, the rib and foot system still provides adequate structure for the declared load capacity.

Weight variations may occur due to material properties and manufacturing processes.

Three pallet material options

Type 1 pallet – virgin green plastic

Type 1 pallets are made from virgin green plastic.

This type suits customers prioritizing:

• Uniform color.

• Good surface aesthetics.

• Higher material quality requirements.

• Finished goods warehouses or areas requiring frequent cleaning.

• Stable and long-term usage needs.

Type 1 pallets are blue and commonly chosen in environments emphasizing appearance, identification, and pallet management.

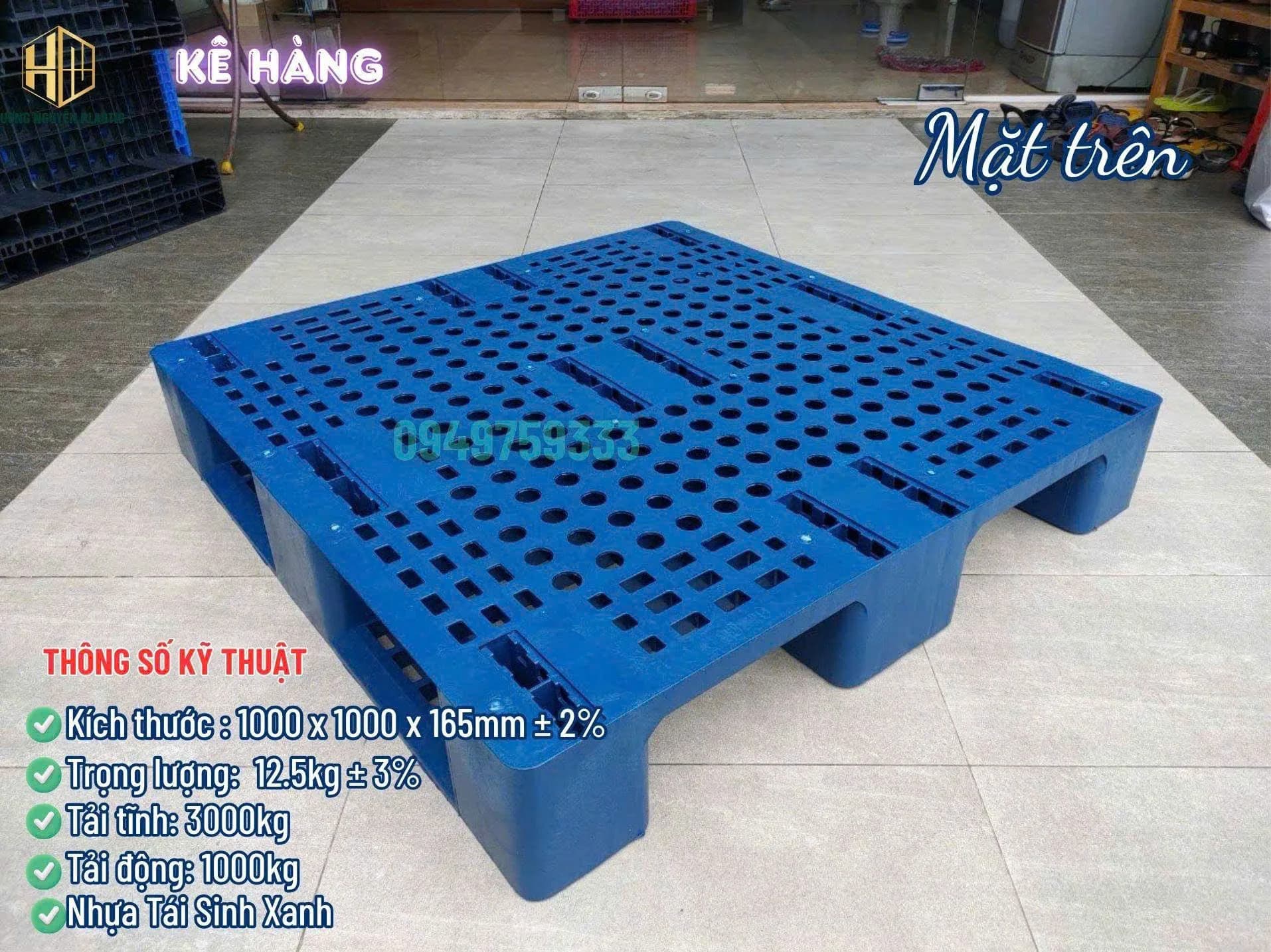

Type 2 pallet – recycled green plastic

Type 2 pallets are made from recycled green plastic.

This product suits:

• Raw material warehouses.

• Production workshops.

• Packing areas.

• Internal stacking and transportation operations.

• Businesses needing to balance functionality and investment cost.

The green color helps easy identification in warehouses, and recycled material offers a more budget-friendly option.

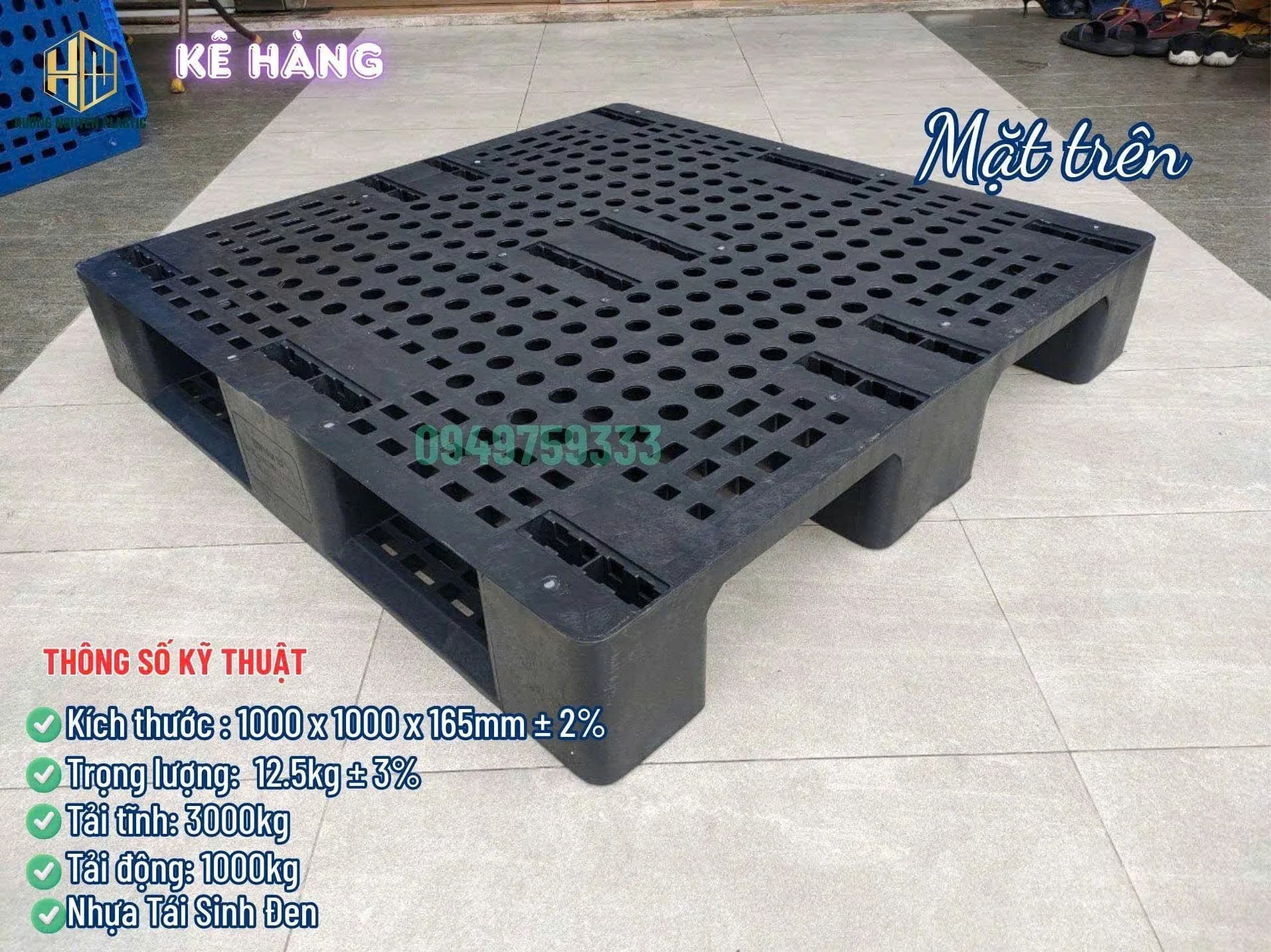

Type 3 pallet – recycled black plastic

Type 3 pallets are made from recycled black plastic.

This pallet type is often suitable for:

• Stacking in industrial warehouses.

• Floor lining and storage area division.

• Mechanical workshops.

• Raw material warehouses.

• Internal warehouse use.

• Customers prioritizing cost.

The black color hides dust and usage marks well, fitting warehouse environments without strict color requirements.

Advantages of cup foot grid top plastic pallets

Reduces goods contact with floor

The pallet creates a gap between goods and floor, helping limit effects from water, moisture, and dust in the warehouse.

Not susceptible to termites

Unlike wooden pallets, plastic pallets are not affected by termites or moisture decay. This is an advantage for warehouse and factory environments.

Easy to clean

The grid top design allows water to drain quickly. The product can be cleaned with water or methods suitable for each type of goods.

Uniform dimensions

Plastic pallets are manufactured by molding, ensuring high uniformity in size and shape, facilitating warehouse arrangement and repeated use.

Reusable multiple times

When used within load limits and properly maintained, pallets can be reused for many cycles, helping businesses reduce frequent replacement needs.

Easy to sort by color

Blue and black pallets help businesses categorize by material, area, product group, or usage purpose.

Applications of 1000 x 1000 x 165 mm plastic pallets

The product can be used in various fields such as:

• Stacking cartons in warehouses.

• Stacking raw materials and additives.

• Storing components and spare parts.

• Transporting semi-finished goods within factories.

• Stacking consumer goods and packaged products.

• Use in the garment industry.

• Use in mechanical and electronic warehouses.

• Stacking in cold storage or humid areas.

• Dividing storage areas in workshops.

• Supporting inbound and outbound operations with suitable forklifts.

• Use in distribution and logistics centers.

• Floor lining in storage areas.

How to choose the right pallet type

Businesses can consider the following:

Choose Type 1 when prioritizing virgin green plastic, uniform color, and higher material or appearance requirements.

Choose Type 2 when needing green pallets and balancing functionality with investment cost.

Choose Type 3 when prioritizing cost, using for stacking, floor lining, or internal warehouse operations.

Besides material, customers should check load capacity, forklift type, goods dimensions, and usage method before selecting.

Safe usage instructions

To maintain durability and ensure safety, businesses should:

• Not exceed the declared load capacity.

• Distribute goods evenly on the pallet surface.

• Avoid concentrating load in one corner.

• Place pallets on flat surfaces.

• Do not throw or drop pallets from height.

• Position forklift forks correctly.

• Do not drag pallets on sharp surfaces.

• Minimize impacts on pallet feet.

• Inspect pallets before each use.

• Stop using pallets showing cracks, breaks, or deformation.

• Secure goods before lifting or moving.

• Do not use on racks without confirming rack load capacity.

Technical specifications of cup foot grid top plastic pallet

• Product name: Plastic pallet with cup feet and grid top

• Dimensions: 1000 x 1000 x 165 mm ±2%

• Weight: 12.5 kg ±3%

• Static load capacity: 3000 kg

• Dynamic load capacity: 1000 kg

• Top type: Grid top

• Foot type: Cup feet

• Type 1: Virgin green plastic

• Type 2: Recycled green plastic

• Type 3: Recycled black plastic

• Color: Blue or black

• Unit: Piece

• Specification: 1 piece/package

• Application: Stacking, warehousing, and transporting goods

Purchase 1000 x 1000 x 165 mm cup foot plastic pallets at Minh Quân Plastic

Minh Quân Plastic specializes in supplying plastic pallets, plastic crates, plastic bins, and many plastic products for factories, warehouses, production facilities, and distribution centers.

The 1000 x 1000 x 165 mm cup foot grid top plastic pallet is available in three material options, making it easy for customers to choose according to usage environment and investment budget.

For consultation, customers should provide goods weight, package dimensions, forklift type, and stacking method on floor or racks so Minh Quân Plastic can recommend the most suitable product.

Customers needing large quantity orders or price quotations can contact Minh Quân Plastic for detailed advice.
